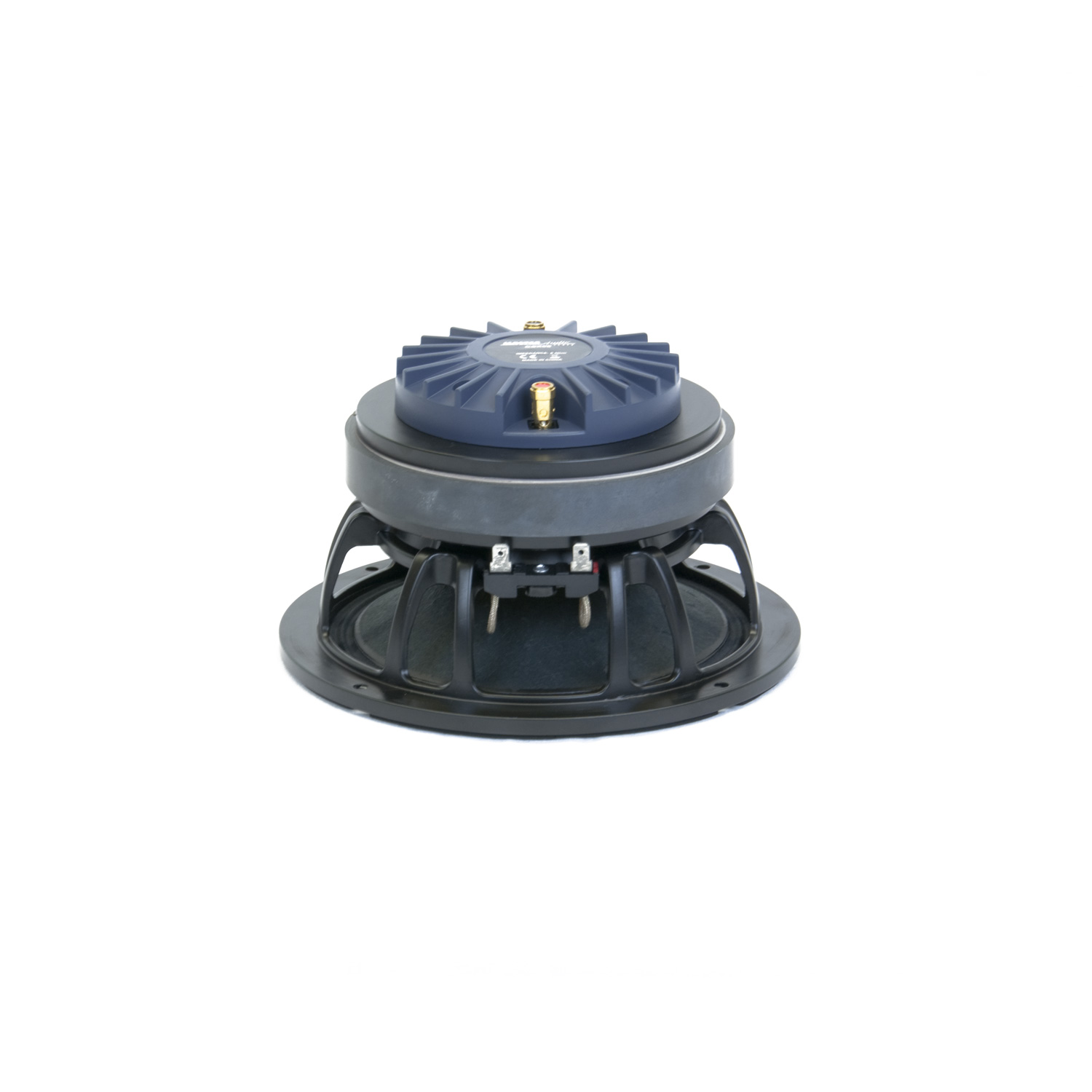

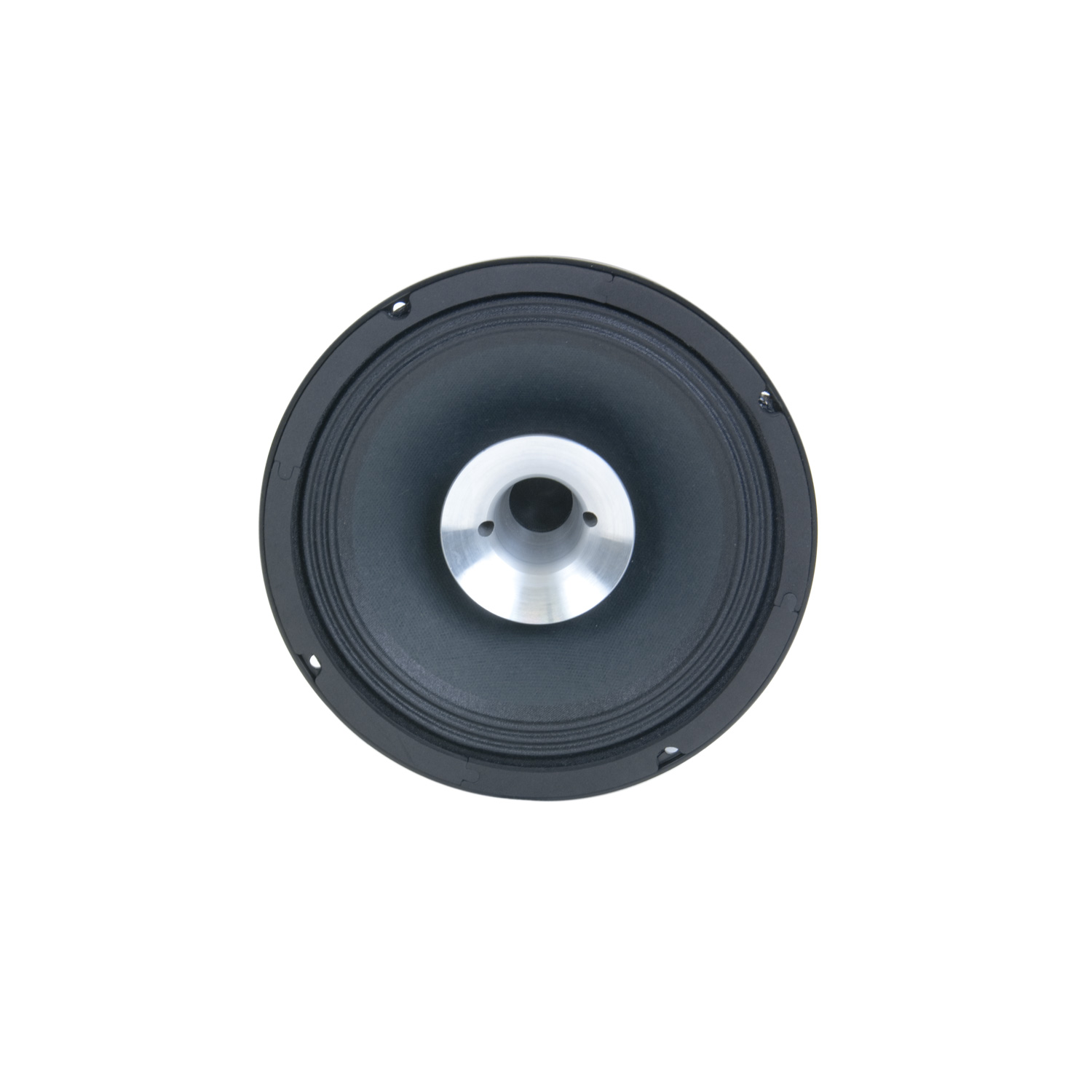

CSX08

8" Coaxial speaker

- Nominal overall diameter: 211 mm (8”)
- LF voice coil diameter: 50 mm / 2"
- HF voice coil diameter: 44 mm / 1.75" (titanium)
- RMS Power: 150 W
- Sensitivity: 95 dB
- Frequency range: 63-20000 Hz
- Nominal Impedence: 8 Ohm
- Flux Density: 1.25 T
- Recommended crossover frequency: 1.7 Khz
- Magnet material: Ferrite
- Voice Coil Winding Material: copper
- Voice Coil Former Material: Glass Fibre
- Cone Material: Paper
- Surround Material: Treated Cloth
- Baffle cutout diameter: 181 mm
- Recessed depth: 116 mm
- Net Weight: 4.4 kg
- Package: 4 pieces each box

CSX08 Datasheet
