In stock
CSX12

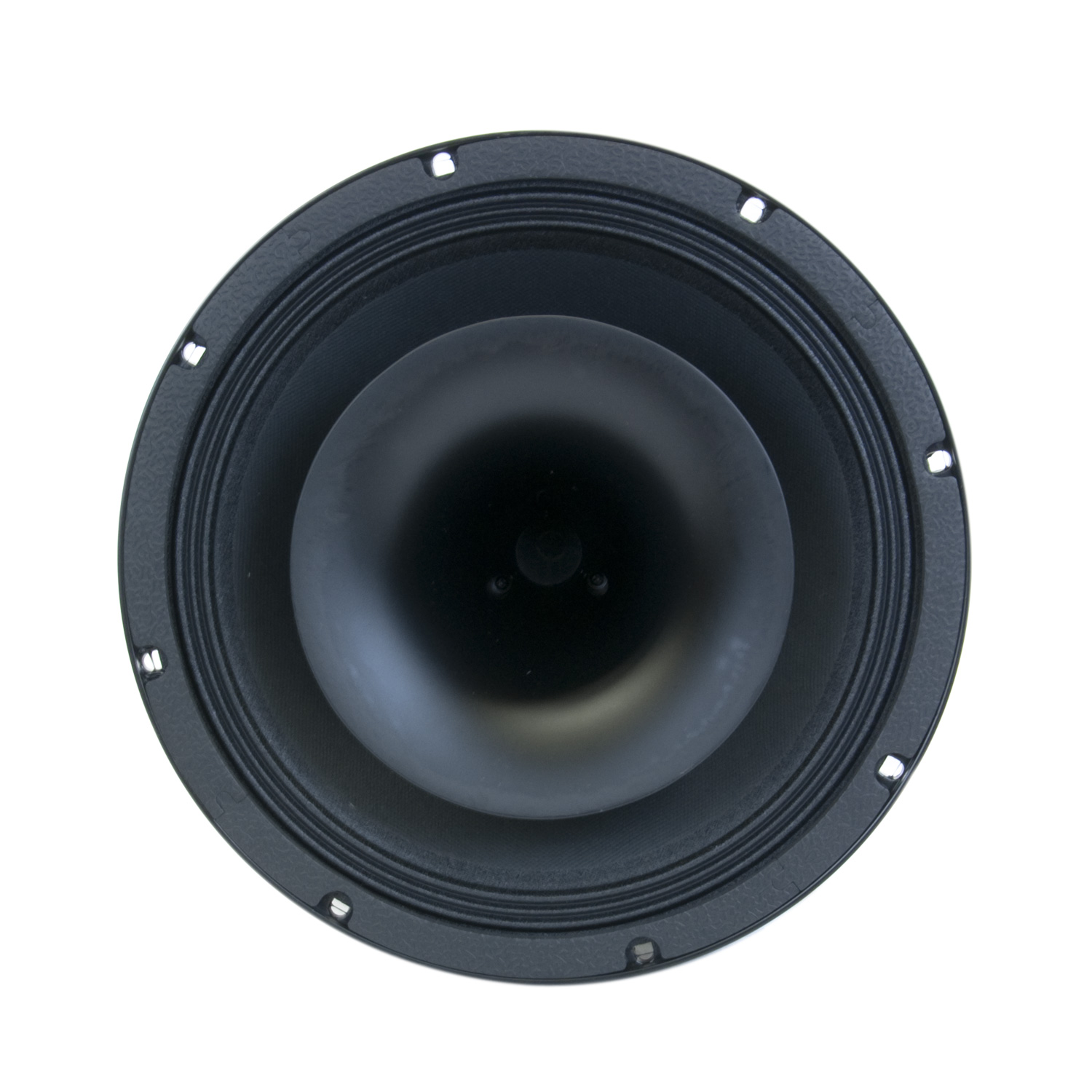

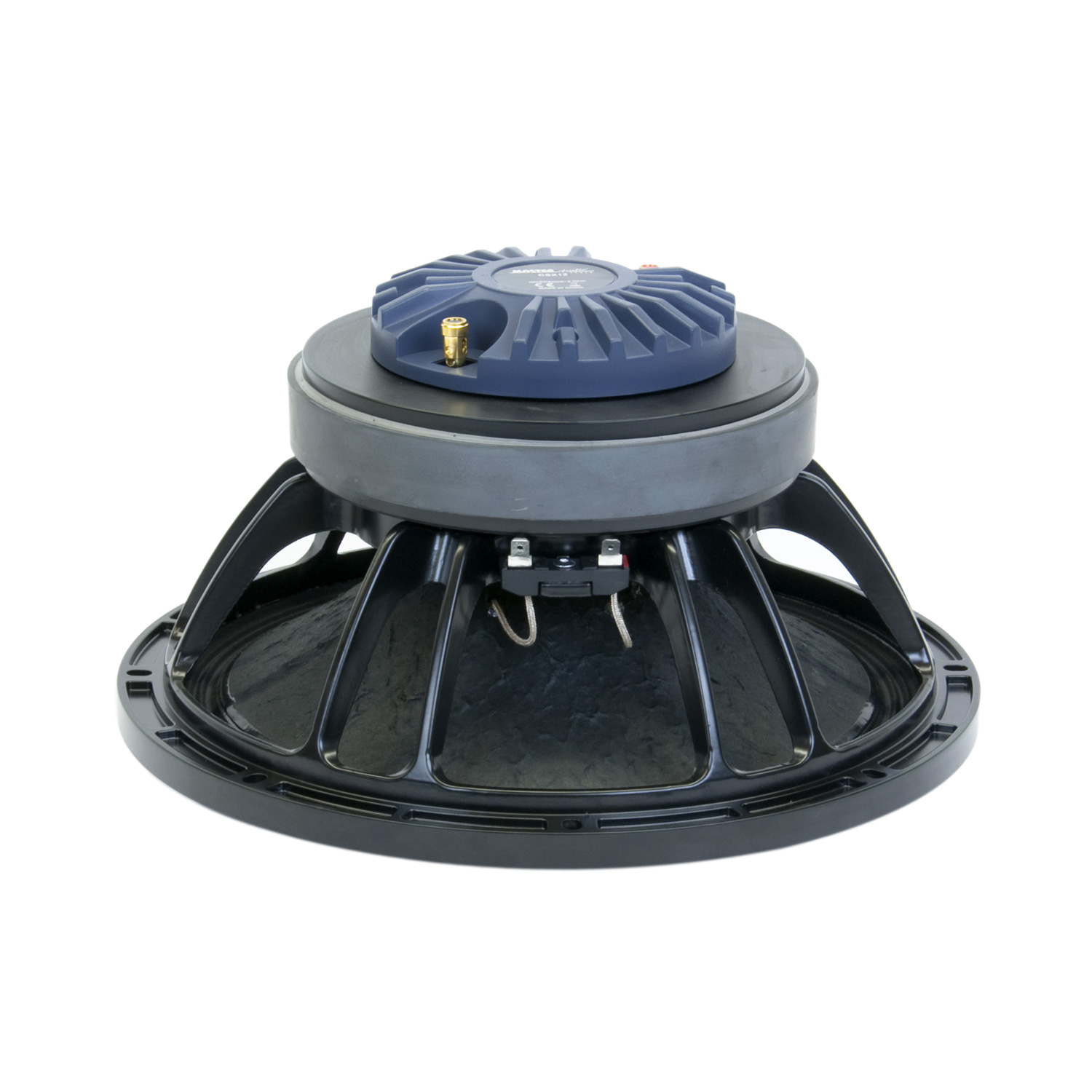

12" coaxial speaker
- Nominal overall diameter: 315 mm (12”)
- LF voice coil diameter: 75 mm (3")
- HF voice coil diameter: 51 mm (2") (titanium)
- RMS Power: 300 W
- Sensitivity: 97 dB
- Frequency range: 71-18500 Hz
- Nominal Impedence: 8 Ohm
- Flux Density: 1.25 T
- Recommended crossover frequency: 1.6 Khz
- Magnet material: Ferrite
- Voice Coil Winding Material: copper
- Voice Coil Former Material: Glass Fibre
- Cone Material: Paper
- Surround Material: Treated Cloth
- Baffle cutout diameter: 285 mm
- Recessed depth: 150 mm
- Net Weight: 8.8 kg
- Package: 1 piece each box
